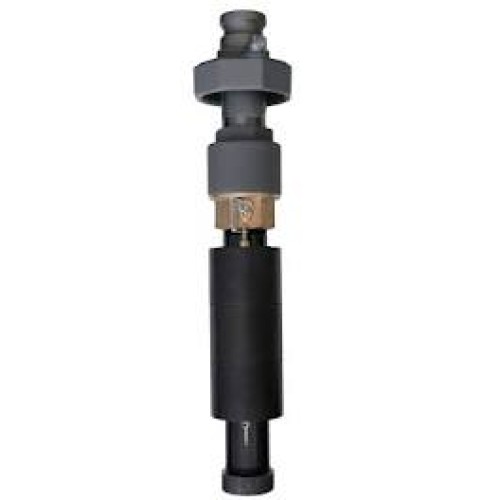

Morrison Brothers 2'' AST Overfill Prevention Valve

The 9095A Overfi ll Prevention Valve is installed at the fill port of a storage tank. Used in a pressurized tight fi ll application, the valve helps prevent tank overfi lls by closing when the liquid level reaches a pre-set warning level (90- 95% full). The valve is installed through a 4” threaded opening and has a built-in bleed hole that allows the fi ll hose pressure to be relieved after the valve closes. This bleed hole also provides anti-siphon protection for the valve.

Features

• The 3” valve can be used with 6” Sch. 40 or 80 pipe.
• The 2” valves can only be used with 4” Sch. 40 pipe.

Construction Details

• Anodized aluminum body
• Brass/stainless steel internal componens
• Stainless steel linkage
